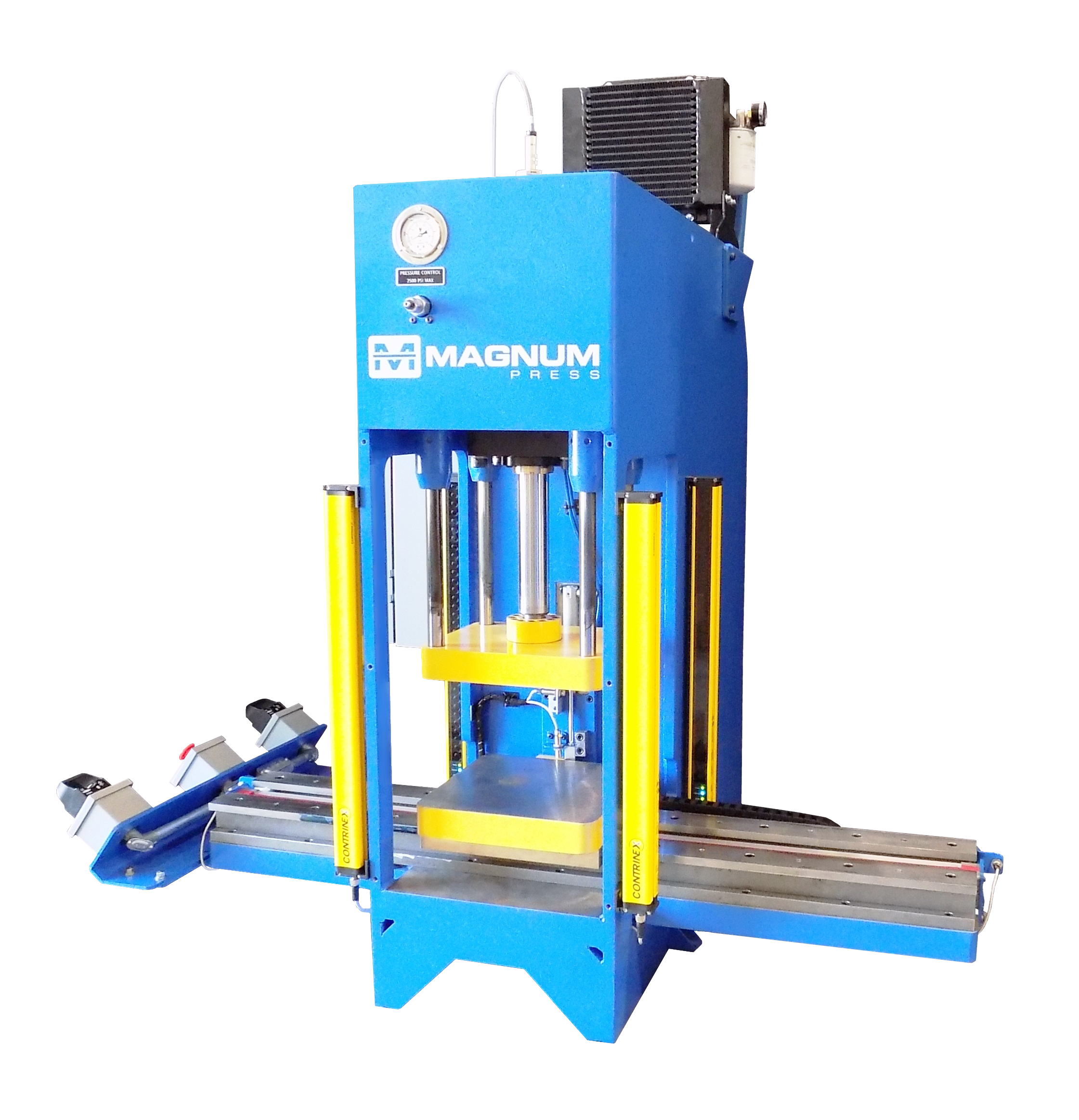

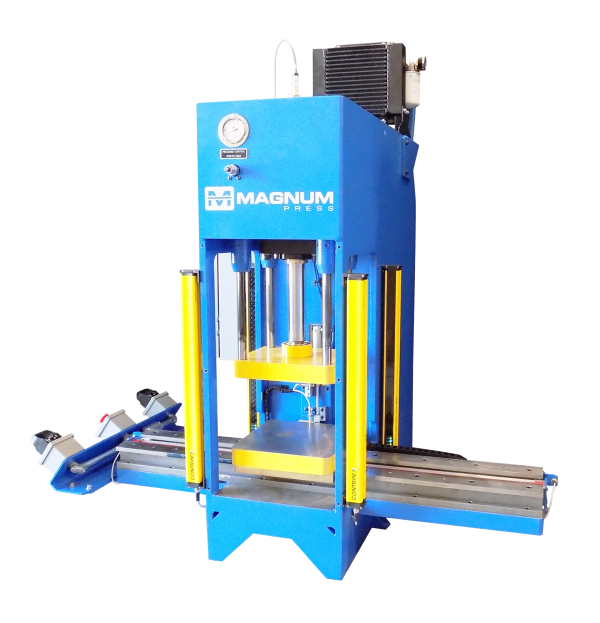

MSS4PB10B – 10 Ton Bench Model Straight Side with 4 Post Tool Plate High Speed Hydraulic Press

The MSS4PB series features a straight side bench-mounted frame design with a 4-post guided ram. This series is available in both standard and high speed.


Tonnage Capacity: 10
Series: MSS4PB Series
Type: Assembly, Blanking, Coining, Punching, Riveting, Shearing, Staking, Straightening, Trimming
Speed: High
Machine Type: Straight Side, Bench
Additional Features: 4 Post RAM, Centered Loaded

Scroll for more information below

Product Description


  • Robust press for heavy industrial applications
  • Heavy Floor Model Straight Side Frame Design eliminates C-frame deflection
  • 4 Post Guided Upper Tool Plate RAM
  • Pressure and Distance Reverse
  • Allen Bradley PLC & HMI
  • PLC & HMI based controls
  • NFPA-79 / UL508A compliant
  • Quiet self contained and removable hydraulic system
  • Efficient manifold w/SICV valves
  • FAST ACTING 3 stage electro-hydraulic decompression
  • Press mounted ergonomic controls
  • 2-Hand Anti Tie-Down Start
  • CAT 4 Safety Start Relay
  • Efficient TEFC electric motor
  • Magnetic Starter w/Lockable Disconnect / Electronic Overload
  • Adjustable Stroke
  • NFPA Cylinder with heavy flange and oversized rod
  • Adjustable tonnage through full range of stroke
  • Removable Bolster
  • Electrohydraulic decompression
  • Flat Face O-Ring hydraulic connections for the most leak resistant design
In need of a powerful, reliable hydraulic press? Maximize production and performance with Magnum Press! Call 855-498-7077 for more information about our quality presses, or get in touch online for a quote on a standard configuration or custom solution.
